OMP steel side mount bracket

OMP steel side mount bracket

OMP's Steel Side Mount Bracket is designed for a multitude of mounting positions with a high-strength construction.

Features

  • Approval: FIA
  • Cover: Steel
Manufacturer:
Product code: HC/731/E
Availability: In Stock For Immediate Dispatch
Price (Contact us)
72,57 €
59,00 €
tax excl.
The price of these seats is determined individually. The price show above is for a basic seat. Additional cost will be added after receiving the project. Please contact us through the form to present the project concept and its valuation.
Qty.

Product description

OMP's Steel Side Mount Bracket is designed for a multitude of mounting positions with a high-strength construction. Designed to work together with OMP Racing Seats, the brackets will fit many other models with a 289mm mount-hole spacing (such as Sparco seats). The multi-hole height/angle adjustment allows for up to 21° of seat tilt. Ultra-strong steel construction features 3mm thick plate, painted in Black.

Quantity: 2 in pack to attach one seat
Material: Steel
Weight: 3kg
Colour: Black
Height: 180mm
Length: 380mm
Thickness: 3mm

• Lowest mounting point: 70.5mm Front, 110mm Rear
• Adjustment Range: 93mm Front, 34.5mm Rear

FIA Approved

Ask us if you don't know how to complete your order for mountings.

Important Information: Please be aware that this sub frame is manufactured to fit the chassis floor of the vehicle. It is NOT made to fit directly to any particular type of seat!

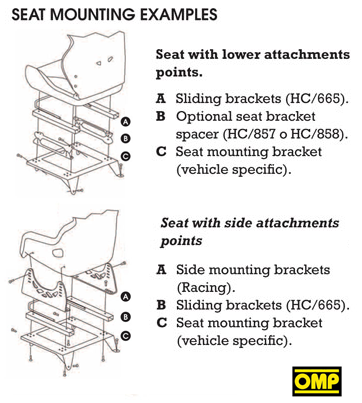

Seat Mounting Examples
Seat with lower attachments points
  1. Sliding brackets (HC/665).
  2. Optional seat bracket spacer (HC/857 or HC/858).
  3. Seat mounting bracket (vehicle specific).
Seat with side attachments points
  1. Side mounting brackets (Racing).
  2. Sliding brackets (HC/665).
  3. Seat mounting bracket (vehicle specific).
