QMS Steel side mounts universal

QMS Steel side mounts universal

NEW

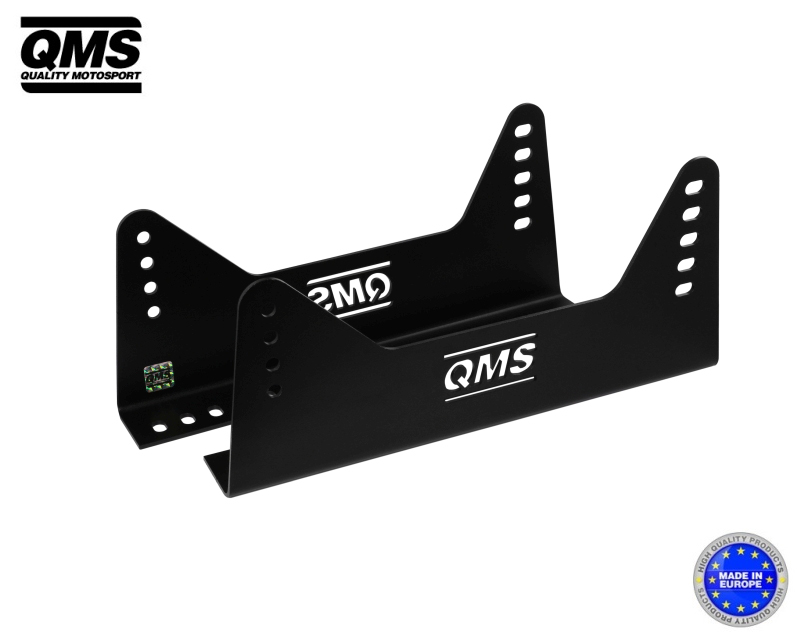

FIA Approved QMS steel seat side mounts are made from 3mm powder coated steel and offer a huge range of adjustment to allow you to position your seats exactly where you want them, thanks to the multi hole design.

Features

  • Approval: FIA
  • Cover: Steel
Product code: QMSMON1
Availability: In Stock For Immediate Dispatch
Price (Contact us)
29,52 €
24,00 €
tax excl.
The price of these seats is determined individually. The price show above is for a basic seat. Additional cost will be added after receiving the project. Please contact us through the form to present the project concept and its valuation.
Qty.

Product description

FIA Approved QMS steel seat side mounts are made from 3mm powder coated steel and offer a huge range of adjustment to allow you to position your seats exactly where you want them, thanks to the multi hole design. Kit includes: 2 x 35x35mm tubes 600mm in length, 4 x weld in plates measuring 80x60x3mm and 4 x weld in support brackets 60x40x3mm with M8 weld in bushings.

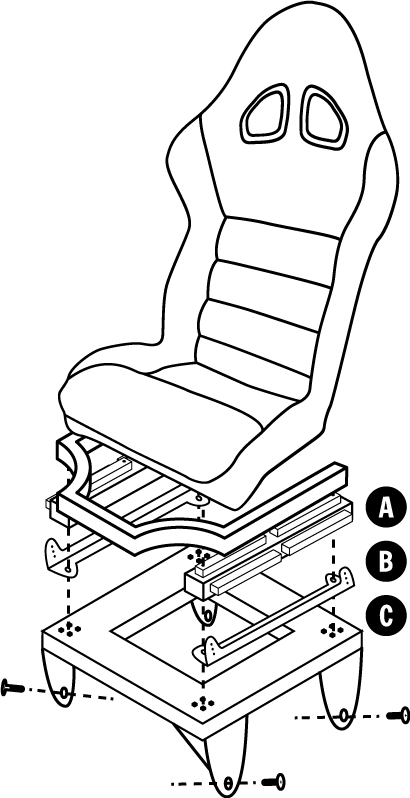

Seat Mounting Examples
Seat with lower attachments points
  1. Sliding brackets (HC/665).
  2. Optional seat bracket spacer (HC/857 or HC/858).
  3. Seat mounting bracket (vehicle specific).
Seat with side attachments points
  1. Side mounting brackets (Racing).
  2. Sliding brackets (HC/665).
  3. Seat mounting bracket (vehicle specific).
